Simplified File Management
Imagine spending less time managing files and more time focusing on your inspection. With Capture 5, data is saved as single, consolidated files, simplifying organization and making sharing a breeze. Collaboration has never been this seamless.
Figure 1: Data file from Capture 4 (left) and Capture 5 (right)
User-Centered Interface Improvements
We’ve redesigned Capture 5.0 with you in mind, creating an interface that’s as intuitive as it is powerful. Key features include:
- Standardized Color Scheme: Navigate effortlessly with a clean, consistent design.
- Always-Available Screenshot Manager: Document your work without missing a beat.
- Optimized Menus: Get what you need, when you need it, with streamlined options.
These improvements let you focus on what matters—getting the job done right the first time.
Figure 2: Capture 5 color scheme and optimized views
Boosted Performance with PAUT, TFM, and TOFD
Capture 5 revolutionizes inspection workflows by allowing inspectors to perform TFM and TOFD simultaneously for weld inspections and other critical applications. This dual capability is a breakthrough for accurate defect sizing and moves inspections beyond traditional amplitude-based techniques. With the ability to configure up to four TFM groups and four TOFD groups, Capture provides unmatched flexibility to address diverse challenges.

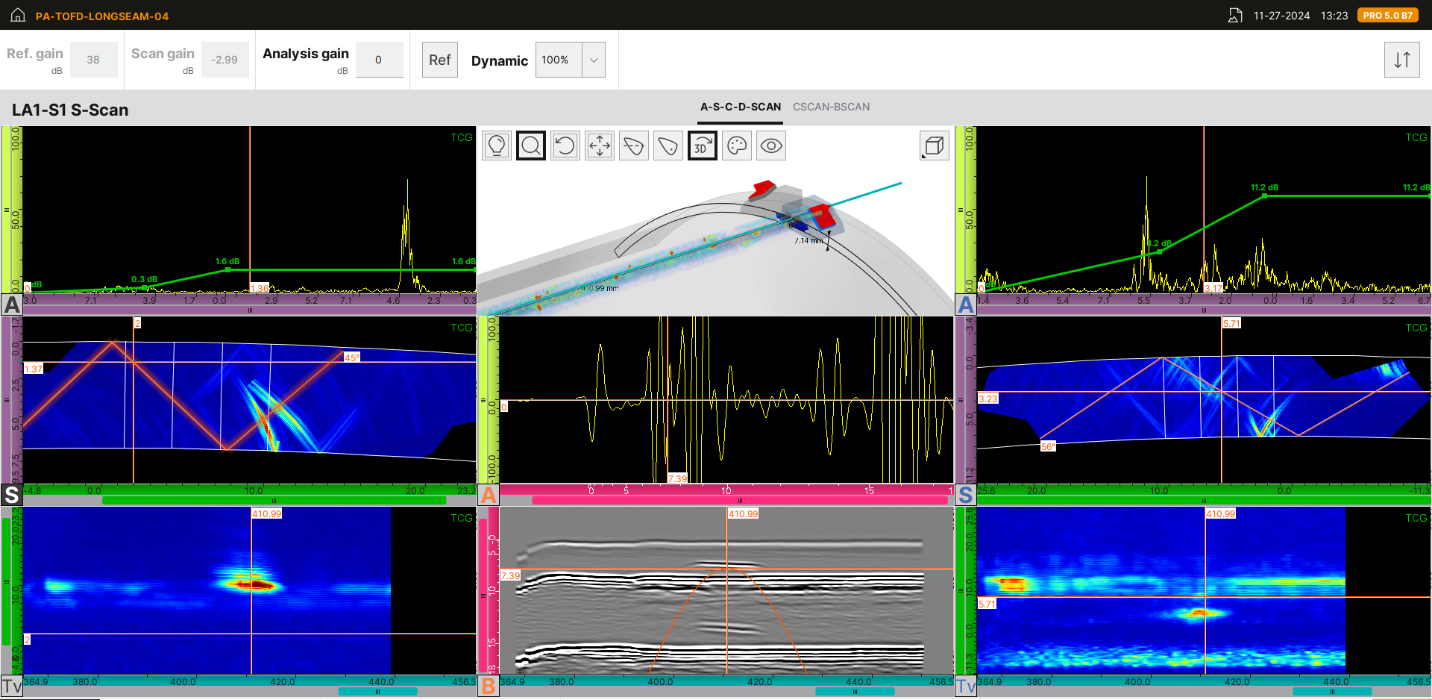

Figure 3: Weld inspection using 2 PWI Channels + TOFD
Inspectors will also benefit from optimized firing sequences and enhanced live displays, enabling faster scanning speeds without compromising data quality. Together, these advancements ensure you’re equipped to handle even the most demanding inspection scenarios with trust and precision.
Better Connectivity for Streamlined Workflows
Stay connected, no matter where you are. Capture 5 introduces tools that make sharing and accessing data effortless:
- Wi-Fi Integration: Transfer data wirelessly with ease.
- OneDrive Compatibility: Automatically sync files to keep your workflow uninterrupted.
Say goodbye to cumbersome transfers and hello to faster decisions and better collaboration.
Figure 4: New Connectivity menu in Capture 5.0
Precision Tools for Effective Inspections
Work smarter, not harder. Capture 5 includes features that let you fine-tune inspections with minimal effort:
- Auto Reference (Ref) Buttons: Adjust gain levels in just a click.
- Keyboard Shortcuts: Simplify cursor placement with intuitive controls:
- Ctrl+click to set the reference cursor
- Shift+click to set the measurement cursor
These time-saving tools let you focus on delivering precise, high-quality results every time.
Figure 5: A-scan showing Auto Ref function set at 80% FSH
Advanced Visualization for Better Insights
See more, understand more, and do more. Capture 5 brings defect detection to a new level with advanced visualization options. Merge TFM channels using three innovative algorithms for enhanced insights:
- Max: Adds the maximum signal from selected channel to optimize flaw detection.
- Mean: Averages signals from selected channels to reduce noise.
- Multiple: Correlates signals from selected channels to minimize noise.
Figure 6: Merged view of two TFM channels using the Max setting
Enjoy faster 3D, top, and side views, enabling real-time decisions with confidence and precision.
Figure 7: Example of 3D rendering with PAUT signal
Conclusion
Capture software version 5.0 is designed for professionals who demand the best. By simplifying workflows, enhancing visualization, and boosting connectivity, this software lets you deliver outstanding results with ease.
Why You’ll Love Capture 5.0:
- Streamline your workflow with simplified file management.
- Enjoy a smoother, more intuitive user experience.
- Expand your capabilities with dual TFM and TOFD functionality.
- Make better decisions with advanced visualization tools.
Embrace the future of NDT and take your work to the next level with Capture 5.0. Visit our website to learn more about Capture, gain access to the software download, to be put in touch with our experts to discuss your next inspection campaign!
Authors: Philippe Cyr, Dominic Giguère.
